Product Details

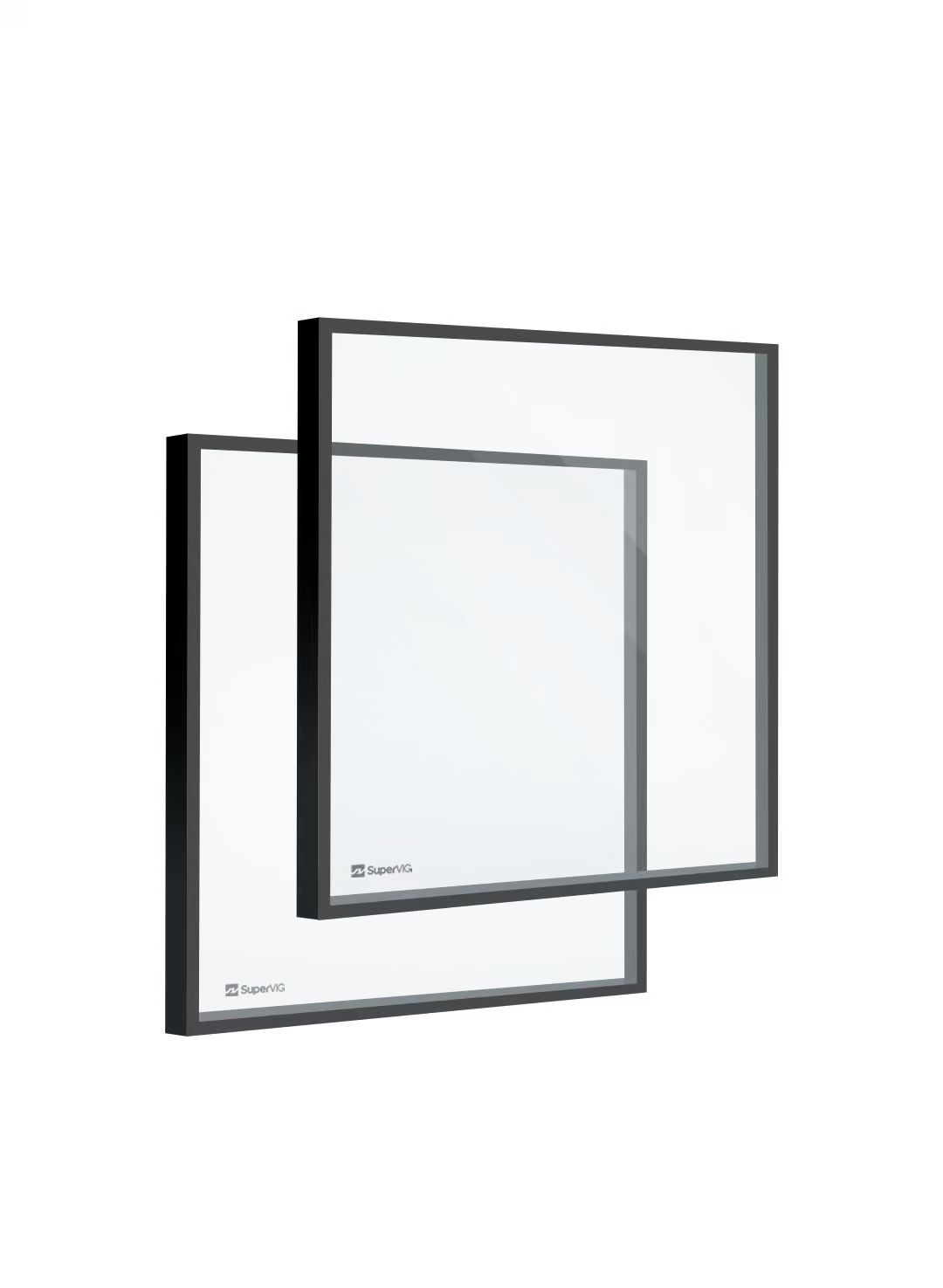

Excellent Sealing: Featuring integrated bending and edge‑sealing technology, the TPS spacer replaces conventional corner joints to achieve full‑perimeter seamless sealing. It greatly reduces risks of air leakage and water infiltration, maintaining long‑term internal dryness.
Upgraded Energy‑saving Performance: With far lower thermal conductivity than aluminum spacers, the spacer significantly mitigates the cold‑bridge effect at glass edges and improves overall thermal insulation. Its energy‑saving performance outperforms ordinary insulated glass with aluminum spacers.
Quiet Protection: The sealed structure effectively suppresses high‑frequency noise such as car horns and human voices, delivering a peacefully quiet indoor environment.
Long‑lasting Durability: It features strong UV‑resistance and anti‑aging properties. Combined with a high‑performance sealing‑adhesive system, it extends service life and delivers reliable protection for residential living experience.
Product Parameters
| Product Name | Glass Structure | Application Field | Model No. | Type | Thermal Transmittance U (W/(m²·K)) | Solar Heat‑Gain Coefficient (SHGC) | Visible Light Transmittance (%) |
|---|
| TPS Insulated Glass · Zhiheng Series | Double‑glazing Single‑cavity | Building (BL) | TPS‑BL‑BW (Door & Window) | High‑transmittance | ＜1.5 | 0.4~0.6 | 50~80 |
| | | | Solar‑shading | ＜1.5 | 0.3~0.5 | 40~60 |
| Triple‑glazing Double‑cavity | Refrigerated Cabinet (FZ) | TPS‑FZ‑CR (Commercial Refrigeration) | High‑transmittance | ＜1.0 | 0.4~0.5 | 40~70 |
| | Medical (MD) | TPS‑MD‑MC (Medical Cabinet) | Solar‑shading | ＜1.0 | 0.3~0.4 | 30~50 |
Product Configuration: 5TL+12Ar(TPS)+5T / 5TL+12Ar(TPS)+5T+12Ar(TPS)+5TL
Thickness Comparison
VIG (Xiamen) Technology Co., Ltd. was established in 2020 with a registered capital of RMB 120 million, covering an area of 65 mu, located in the Guankou Industrial Cluster in Xiamen. Its parent company, Saite New Materials, has been deeply engaged in vacuum insulation technology for over 20 years, serving leading global brands in home appliances, cold chain, and pharmaceuticals, including Haier, Midea, LG, Samsung, Bosch Siemens, Toshiba, Hitachi, and Thermo Fisher Scientific. The company has further expanded into industrial insulation, building insulation, new energy thermal management, and aerospace thermal control.
Qualification Certificate
VIG (Xiamen) Technology Co., Ltd. was established in 2020 with a registered capital of RMB 120 million, covering an area of 65 mu, located in the Guankou Industrial Cluster in Xiamen. Its parent company, Saite New Materials, has been deeply engaged in vacuum insulation technology for over 20 years, serving leading global brands in home appliances, cold chain, and pharmaceuticals, including Haier, Midea, LG, Samsung, Bosch Siemens, Toshiba, Hitachi, and Thermo Fisher Scientific. The company has further expanded into industrial insulation, building insulation, new energy thermal management, and aerospace thermal control.
Application fields
Four Major Application Scenarios
01 Household Appliance & Cold Chain
Eliminate condensation, starting with glass doors.
Applications: freezer doors, display cabinet doors, wine cabinet doors, frozen cabinet doors.
02 Building Energy‑saving
Meets passive‑house energy‑saving standards.
Applications: system windows & doors, curtain walls, passive houses, sunrooms.
03 Transportation
Simultaneous noise and thermal insulation.
Applications: high‑speed rail carriages, automotive glazing.
04 Agricultural Facilities
Preserve heat while maintaining light transmission.
Applications: greenhouses, agricultural installations, energy‑saving covering systems.
