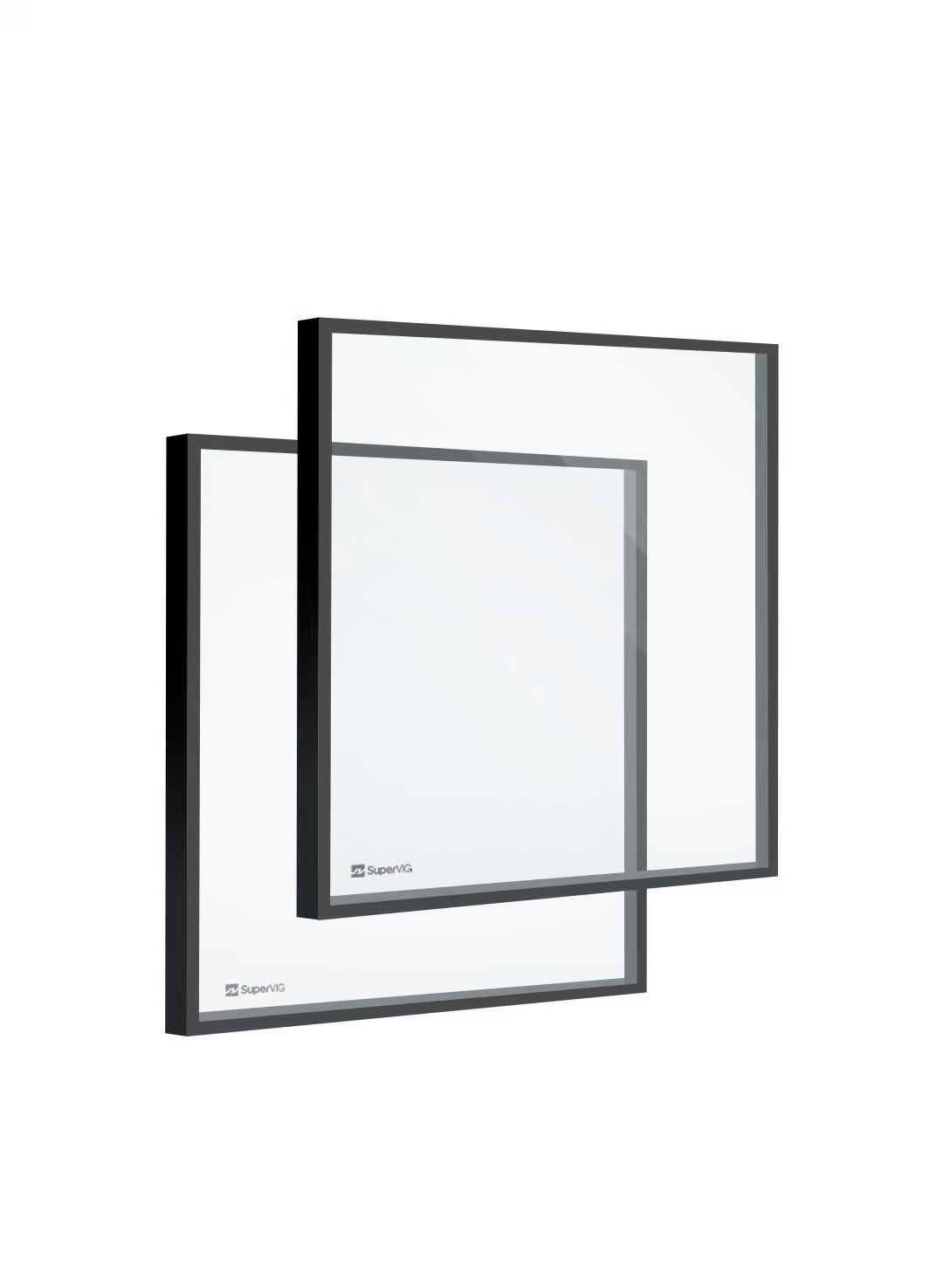

Product Details
Core Energy‑Saving: The static internal dry gas effectively blocks thermal convection, delivering remarkably better thermal insulation performance than traditional single‑pane glass.
Basic Noise Reduction: It attenuates incoming noise to create a quieter indoor environment against daily community noise.
Wide Compatibility: With mature manufacturing technology and flexible specifications, it fits most conventional windows and curtain walls.
Product Parameters
| Product Name | Glass Structure | Application Field | Model | Type | Thermal Transmittance U (W/(m²·K)) | Solar Heat Gain Coefficient (SHGC) | Visible Light Transmittance (%) |
|---|
| Insulated Glass · TPS Spacer | 2‑glass 1‑cavity | Building (BL) | TPS‑BL‑BW (Windows & Doors) | High‑transmittance | ＜1.5 | 0.4~0.6 | 50~80 |
| | TPS‑BL‑BW (Windows & Doors) | Solar‑control | ＜1.5 | 0.3~0.5 | 40~60 | |
| 3‑glass 2‑cavity | Refrigerator (FZ) | TPS‑FZ‑CR (Commercial Refrigeration) | High‑transmittance | ＜1.0 | 0.4~0.5 | 40~70 |
| | Medical (MD) | TPS‑MD‑MC (Medical Cabinet) | Solar‑control | ＜1.0 | 0.3~0.4 | 30~50 |
Product Configuration：5TL+12A+5T / 5TL+12A+5T+12A+5TL
Thickness Comparison
VIG (Xiamen) Technology Co., Ltd. was established in 2020 with a registered capital of RMB 120 million, covering an area of 65 mu, located in the Guankou Industrial Cluster in Xiamen. Its parent company, Saite New Materials, has been deeply engaged in vacuum insulation technology for over 20 years, serving leading global brands in home appliances, cold chain, and pharmaceuticals, including Haier, Midea, LG, Samsung, Bosch Siemens, Toshiba, Hitachi, and Thermo Fisher Scientific. The company has further expanded into industrial insulation, building insulation, new energy thermal management, and aerospace thermal control.
Qualification Certificate
Product System: Vacuum insulation glass, insulating glass, composite insulating vacuum glass, laminated vacuum composite glass, color crystal panel glass, passive doors and windows for buildings, passive doors and windows for refrigeration cabinets, reinforced polyurethane components, integrated door and window energy-saving solutions.
Application fields
Four Major Application Scenarios
01 Household Appliance & Cold Chain
Eliminate condensation, starting with glass doors.
Applications: freezer doors, display cabinet doors, wine cabinet doors, frozen cabinet doors.
02 Building Energy‑saving
Meets passive‑house energy‑saving standards.
Applications: system windows & doors, curtain walls, passive houses, sunrooms.
03 Transportation
Simultaneous noise and thermal insulation.
Applications: high‑speed rail carriages, automotive glazing.
04 Agricultural Facilities
Preserve heat while maintaining light transmission.
Applications: greenhouses, agricultural installations, energy‑saving covering systems.
