Product Details
Superior Thermal Insulation: The vacuum layer effectively blocks heat conduction, delivering thermal insulation performance 2‑4 times higher than conventional insulated glass, and significantly cuts heating and cooling energy consumption.
Full‑frequency Noise Reduction: The vacuum condition greatly weakens sound transmission. It performs excellently in blocking low‑frequency noise such as traffic roars that disturb daily life.
Lightweight & Robust: Thinner structure and lower self‑weight save installation space.
Condensation Prevention: Hardly any gas exists inside the vacuum cavity, fundamentally eliminating internal condensation risks under low‑temperature and humid conditions. Thanks to its excellent thermal insulation property, the indoor‑side glass surface temperature stays close to room temperature to avoid surface condensation.
Product Parameters

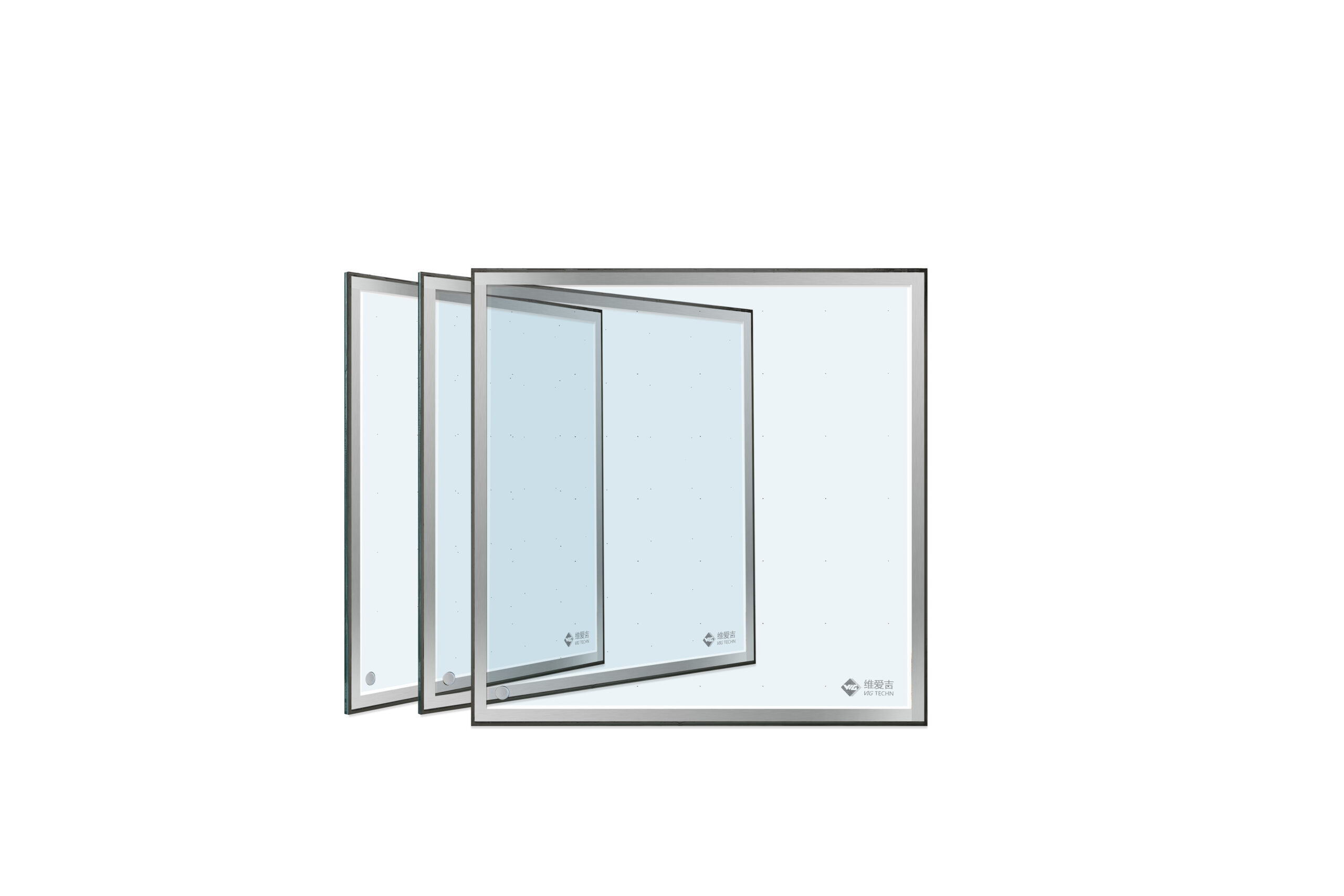

Vacuum Glass・Ultra‑Slim Series
| Product Name | Glass Structure | Application Field | Model No. | Type | Thermal Transmittance U (W/(m²·K)) | Solar Heat‑Gain Coefficient (SHGC) | Visible Light Transmittance (%) |
|---|
| Vacuum Glass · Ultra‑Slim Series | Vacuum Composite Laminated Glass | Building (BL) | VIG‑BL‑BW (Door & Window) | High‑transmittance | ＜0.6 | 0.4~0.6 | 50~80 |
| | | | Solar‑shading | ＜0.6 | 0.3~0.5 | 40~60 |
| Vacuum Glass | Refrigerated Cabinet (FZ) | VIG‑FZ‑CR (Commercial Refrigeration) | Refrigerator‑type | ＜0.6 | 0.4~0.6 | 50~80 |
| | Medical (MD) | VIG‑MD‑MC (Medical Cabinet) | Medical‑type | ＜0.6 | 0.3~0.5 | 40~60 |
Product Configuration: 4TL+0.5V+4T / 5T+0.76PVB+4TL+0.5V+4T
Thickness Comparison
VIG (Xiamen) Technology Co., Ltd. was established in 2020 with a registered capital of RMB 120 million, covering an area of 65 mu, located in the Guankou Industrial Cluster in Xiamen. Its parent company, Saite New Materials, has been deeply engaged in vacuum insulation technology for over 20 years, serving leading global brands in home appliances, cold chain, and pharmaceuticals, including Haier, Midea, LG, Samsung, Bosch Siemens, Toshiba, Hitachi, and Thermo Fisher Scientific. The company has further expanded into industrial insulation, building insulation, new energy thermal management, and aerospace thermal control.
Qualification Certificate
Product System: Vacuum insulation glass, insulating glass, composite insulating vacuum glass, laminated vacuum composite glass, color crystal panel glass, passive doors and windows for buildings, passive doors and windows for refrigeration cabinets, reinforced polyurethane components, integrated door and window energy-saving solutions.
Application fields
Four Major Application Scenarios
01 Household Appliance & Cold Chain
Eliminate condensation, starting with glass doors.
Applications: freezer doors, display cabinet doors, wine cabinet doors, frozen cabinet doors.
02 Building Energy‑saving
Meets passive‑house energy‑saving standards.
Applications: system windows & doors, curtain walls, passive houses, sunrooms.
03 Transportation
Simultaneous noise and thermal insulation.
Applications: high‑speed rail carriages, automotive glazing.
04 Agricultural Facilities
Preserve heat while maintaining light transmission.
Applications: greenhouses, agricultural installations, energy‑saving covering systems.
