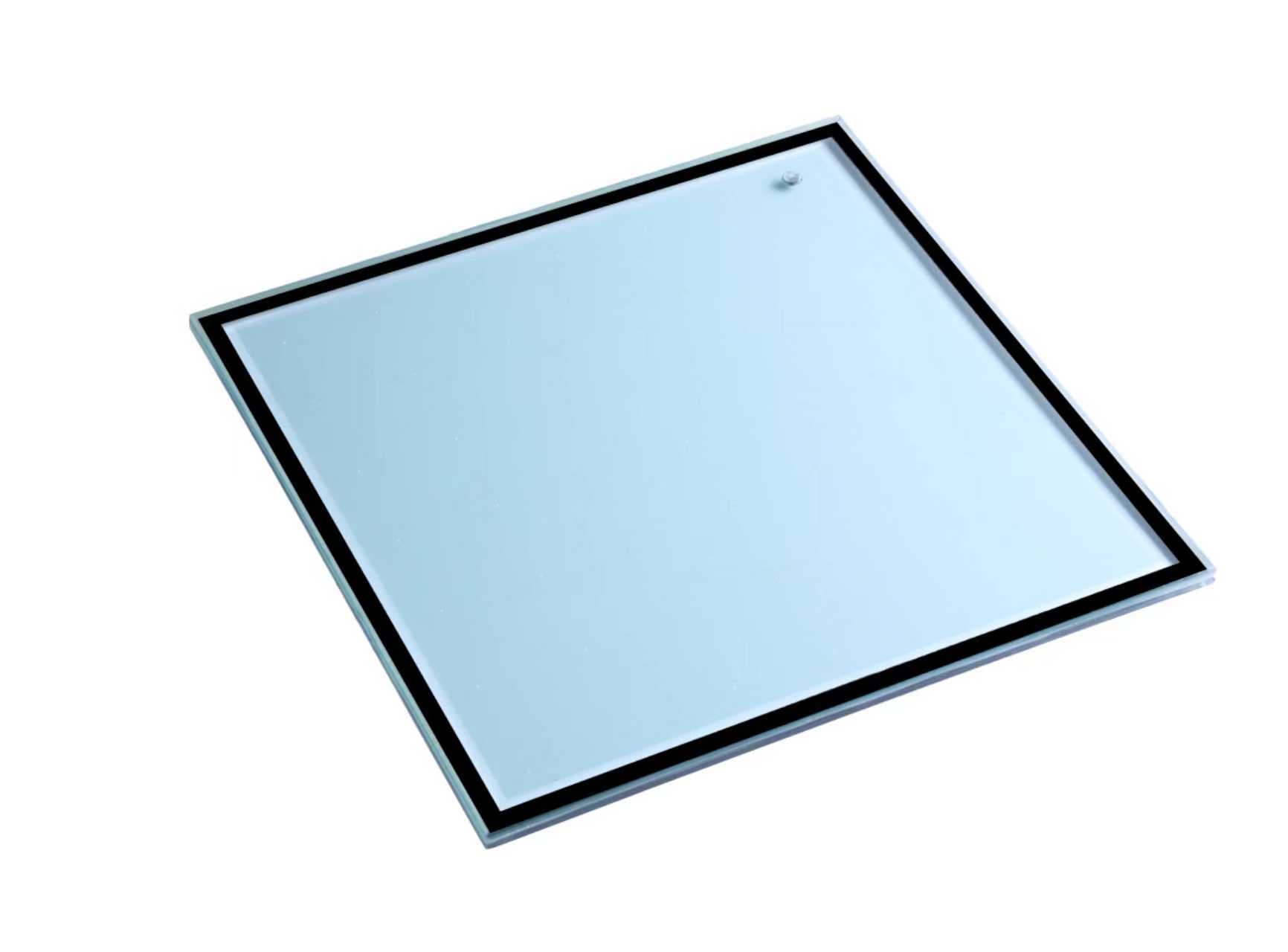

SuperVIG® vacuum glass features prominent advantages of slim‑light structure and superior thermal insulation.
Triple‑glazing double‑cavity Low‑E insulated glass delivers decent thermal transmittance performance, yet its overall thickness is more than twice that of SuperVIG® vacuum glass. SuperVIG® vacuum glass achieves thermal transmittance comparable to building walls, even outperforming walls with poor thermal performance. For building projects, it can be defined as a transparent ultra‑thin "wall".
Under high‑vacuum conditions, the glass edges are permanently sealed with lead‑free alloy flexible solder, producing double‑sealed port‑free vacuum glass with superior vacuum performance.
The port‑free design effectively reduces air leakage risks caused by exhaust ports, ensuring product consistency and reliability.
Featuring slim‑light structure and exceptional thermal insulation, SuperVIG® vacuum glass achieves thermal transmittance comparable to building walls, even outperforming walls with poor thermal performance. It can be regarded as a transparent ultra‑thin “wall” for building applications.
Product Parameters
Glass Type
Thickness
Thermal Transmittance U‑value
W/m²·K
SuperVIG® Vacuum Glass
6.5 mm
0.4‑0.8
Clear Float Glass
4 mm
5.8
Insulated Glass
20 mm
2.5‑2.9
Low‑E Insulated Glass
20 mm
1.5‑1.8
Triple‑pane Double‑cavity Insulated Glass
26 mm
0.7‑1.8
Building Wall
120‑300 mm
0.22‑1.78
Thickness Comparison
VIG (Xiamen) Technology Co., Ltd. was established in 2020 with a registered capital of RMB 120 million, covering an area of 65 mu, located in the Guankou Industrial Cluster in Xiamen. Its parent company, Saite New Materials, has been deeply engaged in vacuum insulation technology for over 20 years, serving leading global brands in home appliances, cold chain, and pharmaceuticals, including Haier, Midea, LG, Samsung, Bosch Siemens, Toshiba, Hitachi, and Thermo Fisher Scientific. The company has further expanded into industrial insulation, building insulation, new energy thermal management, and aerospace thermal control.
Qualification Certificate
Product System: Vacuum insulation glass, insulating glass, composite insulating vacuum glass, laminated vacuum composite glass, color crystal panel glass, passive doors and windows for buildings, passive doors and windows for refrigeration cabinets, reinforced polyurethane components, integrated door and window energy-saving solutions.
